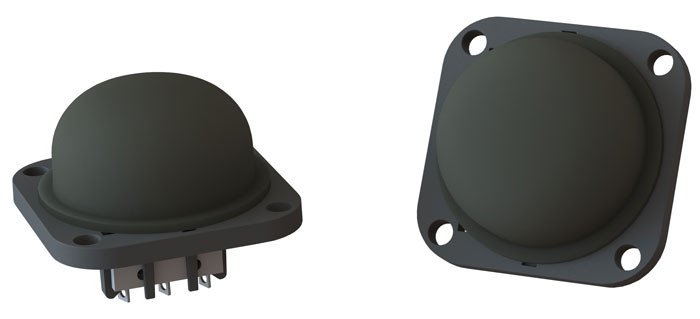

The robust and durable 6244 comprises a semi-rigid PVC bellows and a thermoplastic base that combine for strength, stiffness and long working life. Sealing protection is to IP67 and all manufacturing materials and components meet IEC 60601-1 medical standards.
Its micro switch rating of 0.1A for 125/250V AC or 30V DC operation is available for both SPDT and DPDT contact configurations with momentary action. With four-hole fixing and electrical connection via spade terminals for soldered cable, the haptic puck switch requires a 37mm diameter hole for panel installation and has a nominal height of 20.4mm.
The 6244 is available for optional use with Herga Technology´s new and recently launched modular base system for multi-pedal foot switch applications. The system is available in Single-, 2-, 3- or 4-base configuration with various and optional combined assemblies that utilise Herga´s field proven 6225, 6226 and 6227 series footswitches and 6244 or 6241 series puck switches – together with safety and functional accessories such as guards, lift bars, base plates and handles.
