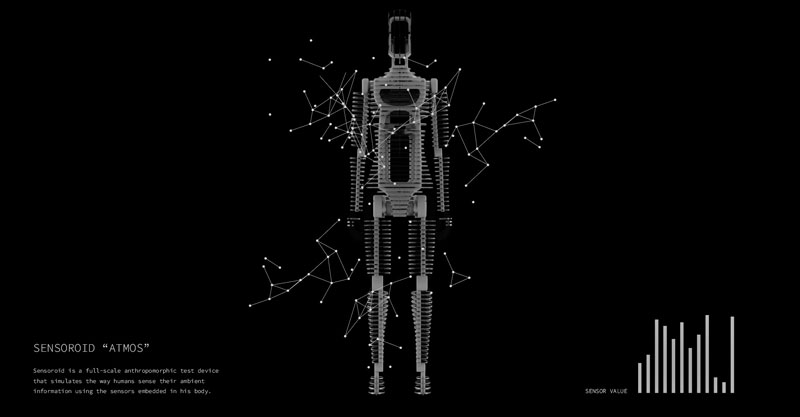

ATMOS sensoroid Design
- Designed as a silhouette of the human body formed in grey acrylic around a white framework.

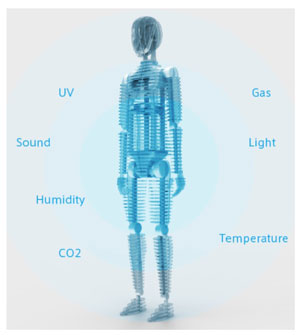

- By sandwiching various sensor modules between the sheets of acrylic, it is possible to optimise this product/robot for a variety of applications.
- THK´s FBL27D slide rails are used in the chest area, and a microcomputer or other device can be installed as well. THK´s RF77F cross-roller ring is also used for/in the robot´s waist.
Prototype details
- Transparent boards/sheets are aligned at a 15mm pitch, and sensor modules can be easily situated between them.
- Sensor data is visualised on a separate monitor.
ARGUS MOVA smart sensing chair Design
- With white shell-type seats and legs made of transparent acrylic, this chair offers a futuristic feel that seems to float in the air.
- Its shape takes into consideration this product´s deployment as seats in automobiles, trains, airplanes and other applications.
- High-sensitivity piezo sensors are incorporated into the seat portion, enabling heart beat, respiration rate, and more to be detected based on minute movements of the human body.
